Mag Stereo

FM 24

Dual Step Stereo Microscope with pillar stand for adjustable focusable working distance including transmitted & reflected light illumination, 95 mm glass plate, Black & White stage plate with clips, 360° rotatable Rack & pinion focus drive, dual step turret objective of 2x (81 mm) / 4x (58 mm) for magnification of 20x or 40x with paired widefield eyepiece 10x/20 mm, Microscope body with built in 45° binocular tube with IPD of 55-75 mm,

+/- 5 mm adjustable diopter.

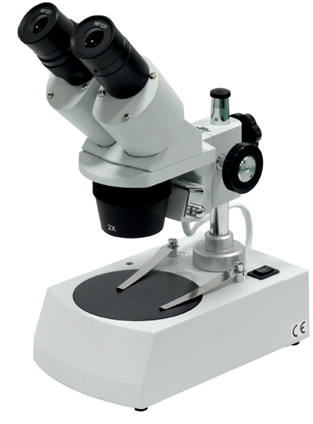

Mag Stereo FM 24

Specification

Technical Feature MagStereo
FM 24
Optical design Greenough
Stereo Optical system Par focal
Magnification Changer fixed 2x & 4x
Eyepieces 10X/20mm
15X/13mm
20X/10mm
Dioptre correction ± 5
Binocular tube Integrated
interpapillary Distance 55mm-75mm
Binocular observation 45deg
Working Distance 81/58mm
Magnification Range 20X & 40X
Stand Pillar Stand
Focus Drive Individual adjustable
movement 60mm travel
Grip Integrated
Illumination System Long lasting LED
Incident and Transmitted light Yes, as a standard
